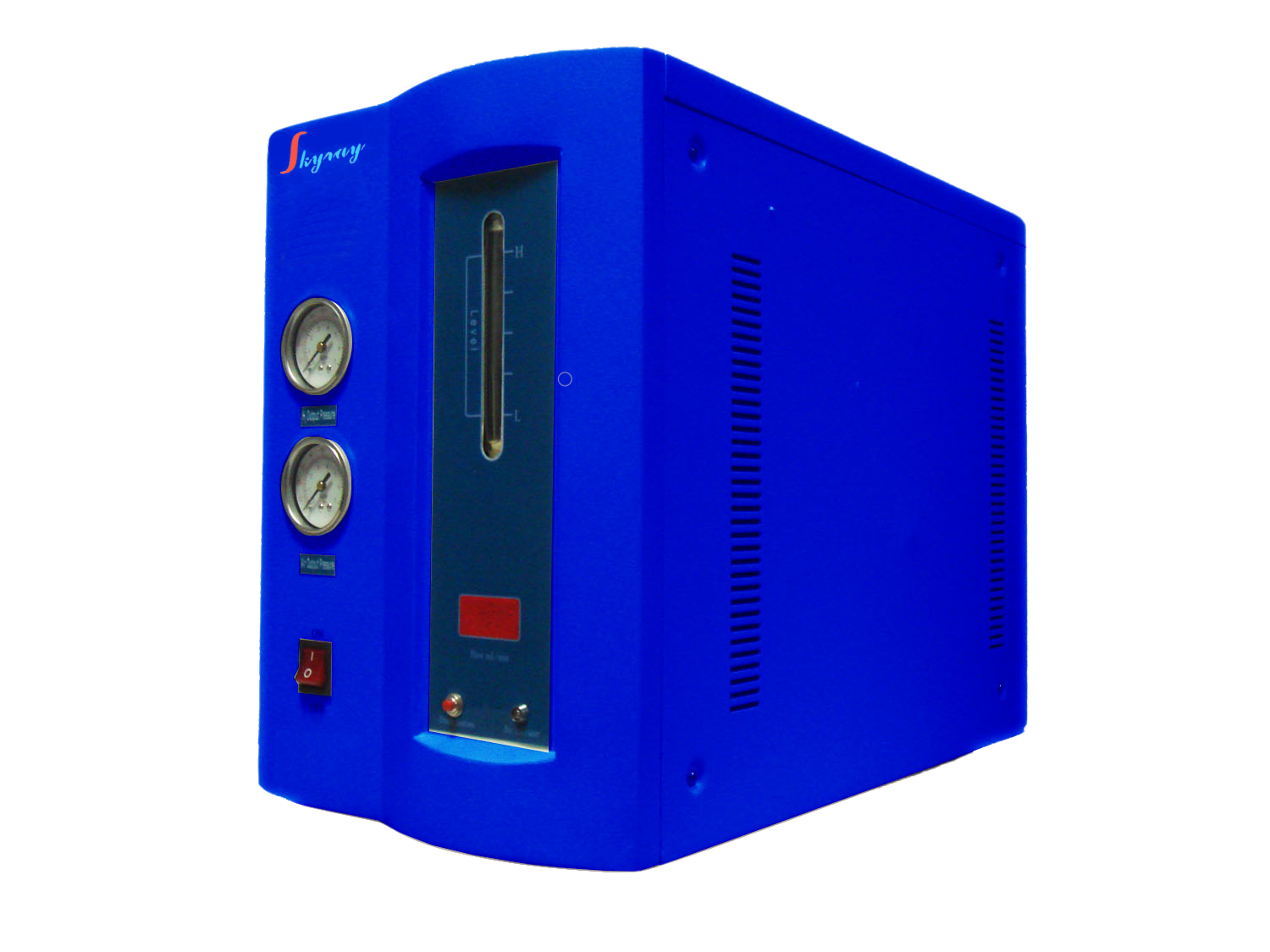

AH-3/AH-5 Combined Hydrogen and Air Generator
  • Model: AH-3/AH-5
  • Application: Hydrogen and Air Generation
  • Phone: 617.202.3879
  •   Request a Quotation
     Based on the Model-H high purity hydrogen generator and Model-A air generator, AH-3/AH-5 generator combines the two with great quality and user friendly design. It is a perfect combination of safety, convenience and reliability, featuring advanced technique and stable performance.
  • Hydrogen and air can be generated together or separately
  • Air passage: since the cylinder is made of stainless steel, there is no rustic water like in generators which use carbon-steel cylinder
  • Hydrogen passage: advanced switching power supply is adopted so that efficiency of electrolysis can be highest
  • Multi-stage protective device is installed, improving effectively the safe operation of the AH-3/AH-5 Combined Hydrogen and Air Generator.
Model AH-3 AH-5
Purity of produced Air Purity of produced Air
Purity of produced Hydrogen 99.999%
Output flow Hydrogen: 0 ~ 300 mL/min
Air: 0 ~ 2L/min
Hydrogen: 0 ~ 500 mL/min
Air: 0 ~ 5L/min
Output pressure 0 ~ 0. 5MPa (factory default setting: 0.5 ± 0.01MPa)
Power supply AC 220V/50Hz or 110V/60Hz
The maximal power consumption 270W 320W
